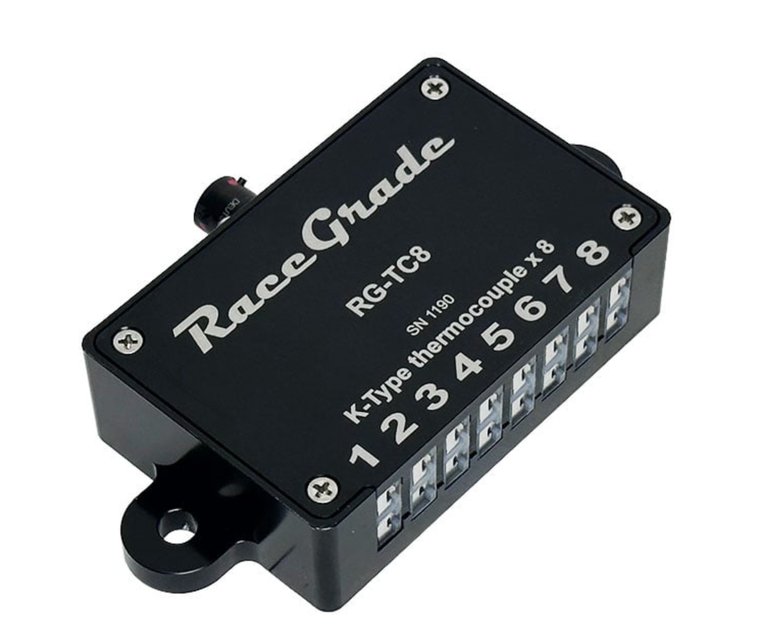

RaceGrade TC8 Thermocouple to CAN

The RaceGrade TC8 is a CAN based device that reads in up to 8 thermocouple temperature sensors, typically used for EGT, exhaust gas temperature measurement.

Features:

• Small, lightweight & compact package
• Easy to adapt and wire into any vehicle, just 4 wires; power, ground, CAN high and CAN low.
• Built in amplifiers for up to 8 channels
• Splash protection, but not waterproof

Specifications:

• Input Temp Range: 0 to 1000*C
• Thermocouple Style: K-type only
• Operating Voltage Range: 6 to 24vDC
• Operating Current Draw: < 0.1 Amps
• Operating Temp Range: -40*C to 120*C
• Dimensions: 3.5"x2.26"x1.0"
• Weight: 173 grams
• Mating Connector: ASL606-05SN
