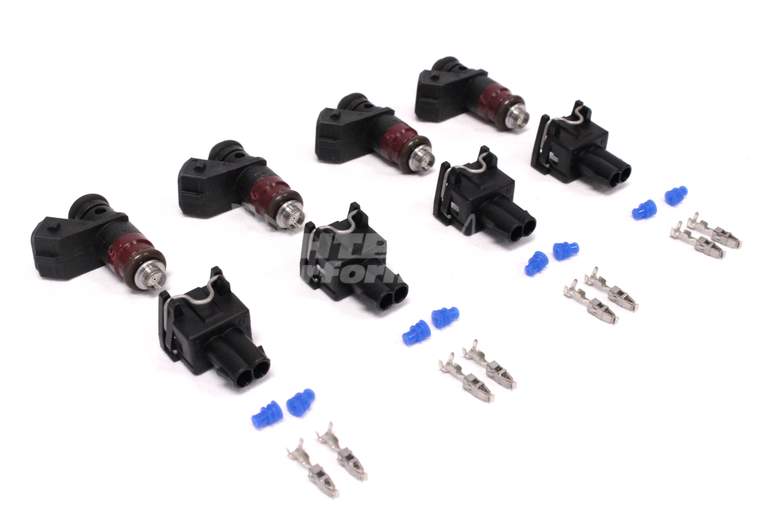

These Ultra-Compact, high flow injectors are just 48mm end to end and dimensionally identical to the popular 60lb/hr Deka IV Shorty Injectors! These injectors flow 80 lbs/hr at 43.5 PSI ( 3 BAR )! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths. This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.
These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.
Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip providing a true 26 degree spray pattern for improved mixture preparation. This results in lower BSFC and better idle quality than many injectors with less flow.
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility
Specifications:
Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 80 lb/hr = 875 cc/min
Offset: 0.065ms
Turn on time @ 14VDC: 1.3ms
Turn off time: 0.7ms @ 600KPa
Connector: Bosch EV1
Series: DEKA 5 ( DEKA V )
Orifice Type: 8 hole Multi-orifice
Spray Pattern: 26 Degree Spray Cone
Factory fitted with Viton upper o-rings
48mm end to end
