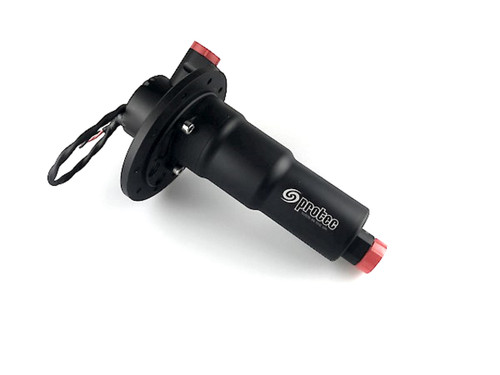

The brushless fuel pump has been engineered to provide precise fuel flow for the most demanding applications. It is Suitable for use with Ethanol, diesel and gasoline and is able to deliver fuel at higher pressures while using less amps. It is lighter than any comparable fuel pump and features custom built brush-less motor with ceramic bearings and an ultra efficient pump mechanism which provide unrivalled performance. Each fuel pump is tuned to provide the most efficient torque to provide optimized flow. It is housed in an electroless nickel, military spec hard anodised billet aluminium housing. Electronic data with 2D and 3D drawings supplied with each pump on a USB stick.
This fuel pump can be used in or outside the tank but needs to be specified when ordering!!
Ensure fuel is always clean and filtered.
Ensure all fittings are tight before use.
Check filter and replace if required.
| Flow | 250 ltr/hr @ 5bar |
| Current Draw | 4.75 amps @ 13.8vdc |
| Pressure | 0-10 Bar |
| Flow | 326ltr/hr @ 5bar |
| Current Draw | 7.58 amps @ 13.8vdc |
| Pressure | 0-10 Bar |
| Flow | 374ltr/hr @ 5bar |
| Current Draw | 8.85 amps @ 13.8vdc |
| Pressure | 0-10 Bar |
